C4 vs ArchiMate: Choosing the Right Modeling Approach for Your Project

You’re starting a new project and need to visualize the architecture. Should you use C4 model or ArchiMate? The answer isn’t “one is better than the other” - it’s about choosing the right tool for the right phase of your project.

In this article, I’ll share when each approach shines and how to use them effectively together.

The Core Difference

C4 model is like a whiteboard sketch - fast, intuitive, and great for communication.

ArchiMate is like a technical blueprint - precise, comprehensive, and great for governance.

Both have their place. The key is knowing when to use which.

When to Use C4 model: Concept and Design Phase

C4 excels when you need to quickly communicate ideas and explore solutions. It’s perfect for:

• Brainstorming sessions with the team
• Initial architecture proposals
• Explaining systems to new team members
• Sprint planning discussions

Why C4 Works for Early Stages

C4 has only 4 levels of abstraction:

1. Context - Who uses the system and what external systems it connects to
2. Container - High-level technical building blocks (applications, databases)
3. Component - Components inside containers
4. Code - Class diagrams (optional, often auto-generated)

This simplicity is a feature, not a limitation. During the concept phase, you don’t need 50 element types - you need clarity.

Example: Corporate Payment System

Let’s model a payment system that integrates with a bank API and internal systems (HR, Sales, Logistics). Here’s how quickly you can sketch this with C4:

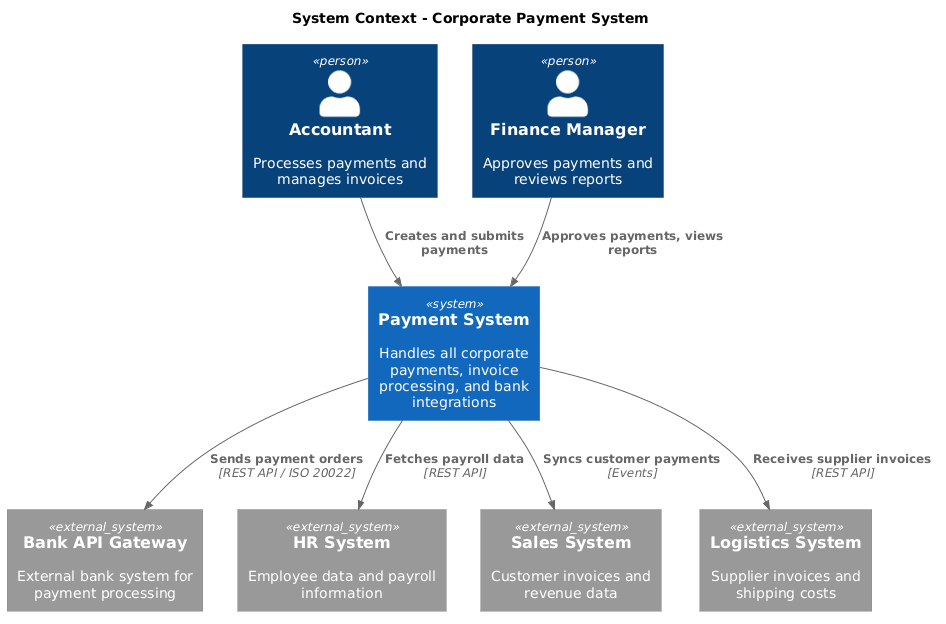

C4 Context Diagram (PlantUML):

In 10 minutes, the whole team understands the scope and integrations. No training needed.

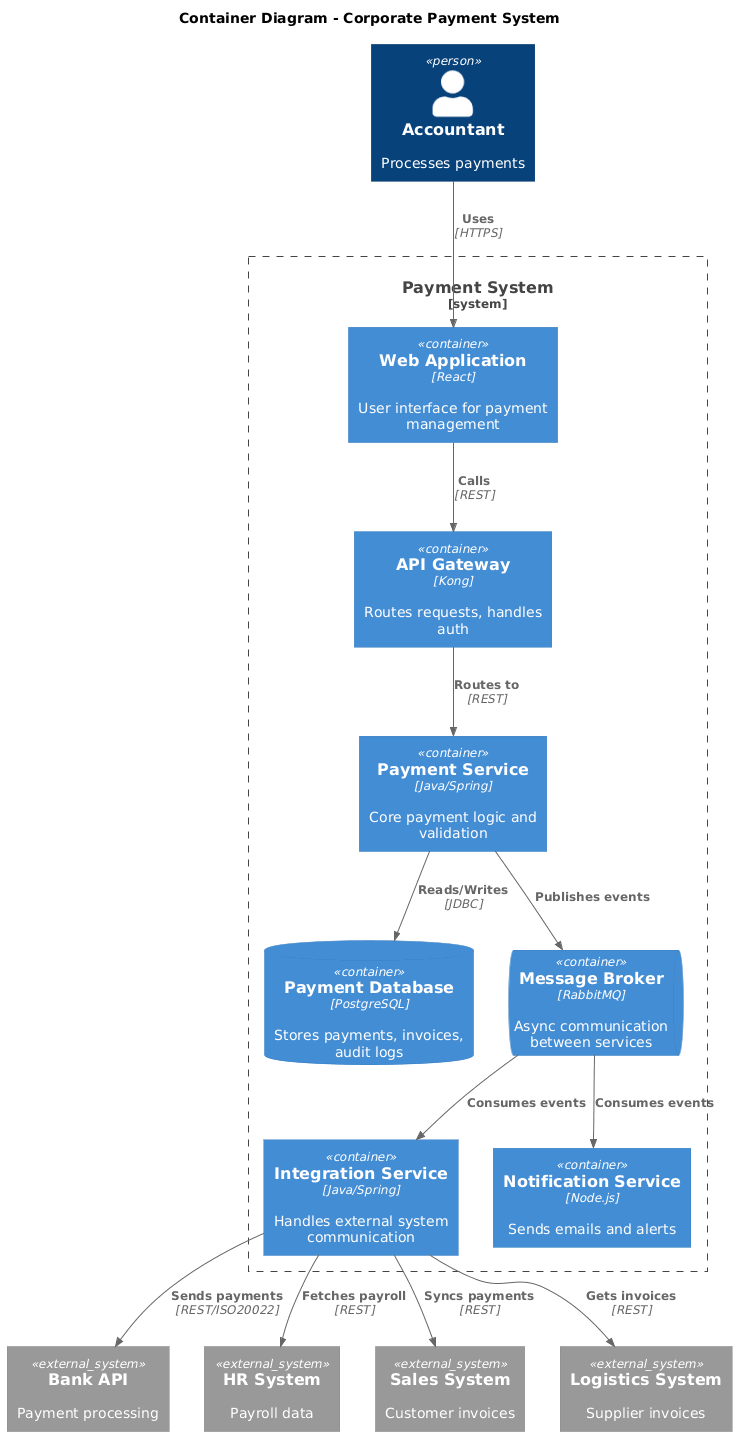

C4 Container Diagram (PlantUML):

Notice how the labels on connections make it clear what data flows where - business stakeholders can follow this without technical background.

C4 for Discovering Dependencies

In my experience, C4 shines during the concept phase - especially when you need to discover dependencies with other systems quickly. You can sketch out integrations in real-time during workshops and immediately see what’s missing.

What makes C4 particularly effective is how well business stakeholders understand the diagrams. The labels on connections (“sends orders via REST API”) and descriptions on components (“Handles payment processing”) give everyone - technical and non-technical alike - a clear picture of the system scope and boundaries.

C4 Strengths

Aspect	Benefit
Learning curve	Minutes, not days
Tooling	Any diagramming tool works
Audience	Developers AND business stakeholders
Iteration speed	Quick to modify during discussions
Dependency discovery	Fast exploration of system integrations

When to Use ArchiMate: Complex Systems and Enterprise Architecture

ArchiMate becomes essential when you need to document existing systems and their relationship to business processes. It’s designed for:

• Enterprise architecture documentation
• Mapping IT systems to business capabilities
• Compliance and audit requirements
• Impact analysis across multiple domains

Why ArchiMate Works for Complex Landscapes

ArchiMate provides three layers:

1. Business Layer - Processes, actors, services, functions
2. Application Layer - Applications, components, interfaces, data
3. Technology Layer - Infrastructure, networks, devices

This allows you to answer questions like:

• “Which business processes depend on this legacy system?”
• “What happens to our operations if this application fails?”
• “How does this IT change affect our business capabilities?”

Example: Same Payment System - ArchiMate View

Now let’s model the same payment system with ArchiMate. Notice how we start from business processes and map down to applications:

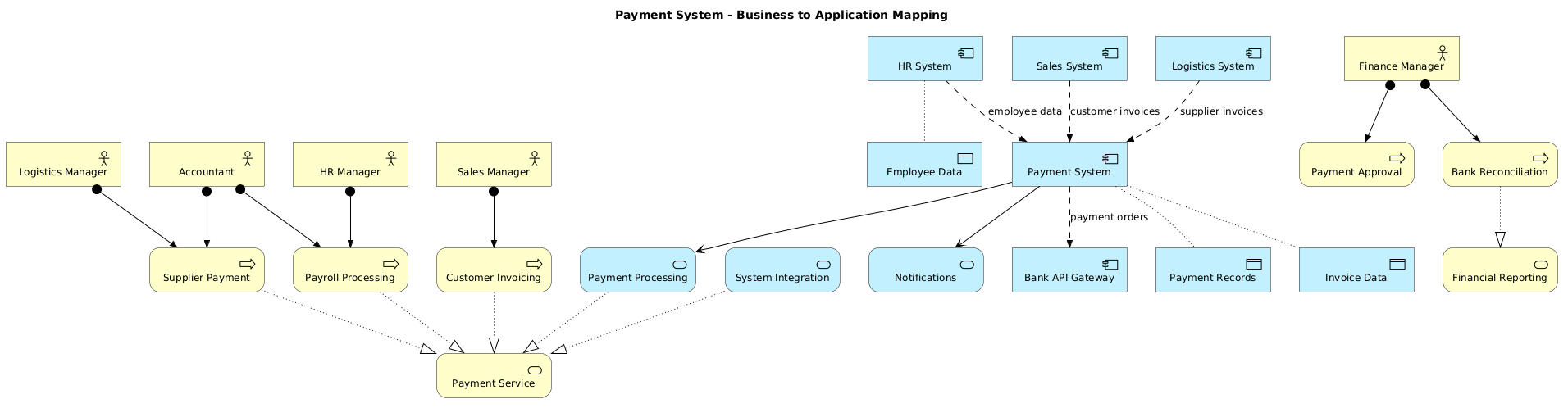

ArchiMate Business-Application Mapping (PlantUML):

This diagram answers questions C4 cannot:

• Which business processes use the Payment System?
• Who is responsible for each process?
• What data flows between HR, Sales, Logistics and Payments?
• If the Bank Gateway fails, which processes are affected?

This level of detail is overkill for a design meeting, but critical for a migration project affecting multiple business processes.

When to Skip C4 and Start with ArchiMate

Here’s something I’ve learned the hard way: if you’re dealing with a complex problem in an existing organization with established business processes supported by IT systems, skip C4 entirely. Go straight to ArchiMate.

Why? Because in these situations, understanding the business processes comes first. Start at the Business Layer - model the processes, actors, and business services. Then work your way down to the Application and Technology layers. This top-down approach ensures your solution actually addresses the business needs, not just the technical requirements you assumed were important.

ArchiMate for Migration Planning

Another ArchiMate advantage that often gets overlooked: built-in support for migration modeling. ArchiMate includes concepts like Plateau and Gap that let you model:

• Current state (Baseline)
• Target state (Target Architecture)
• Transition states (Intermediate Plateaus)
• What needs to change between each state (Gaps)

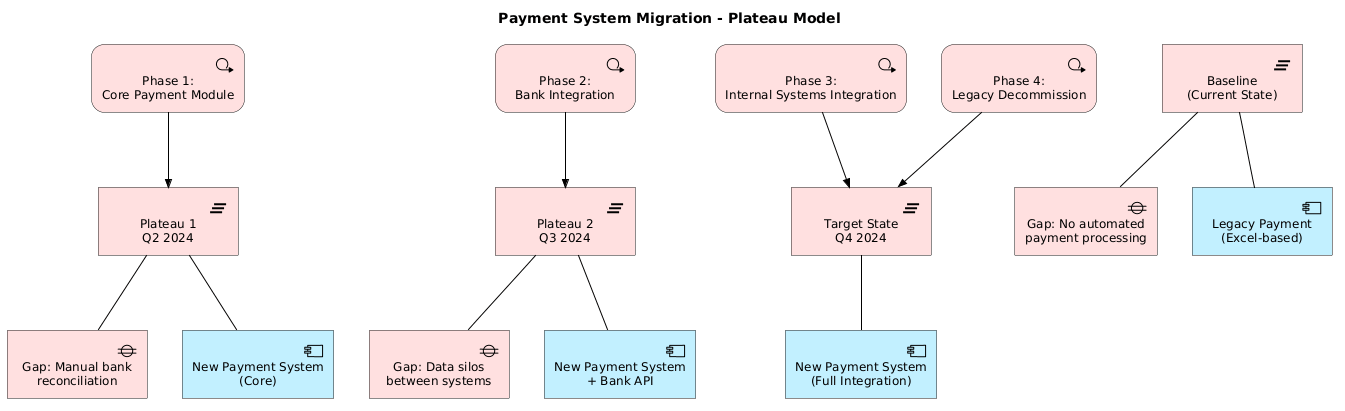

Example: Payment System Migration Roadmap (PlantUML):

This migration view shows stakeholders exactly what will be delivered when, what gaps remain at each stage, and what work packages drive each transition. Try doing that with a C4 diagram.

This is invaluable for large transformation projects where you can’t flip a switch overnight.

ArchiMate Strengths

Aspect	Benefit
Business-IT alignment	Native support for mapping
Standardization	Industry-standard notation (The Open Group)
Analysis capabilities	Impact analysis, dependency tracking
Governance	Formal documentation for compliance
Migration planning	Built-in support for transition modeling

A Practical Decision Framework

Use this simple guide:

Situation	Choose	Why
New project kickoff	C4	Speed and clarity matter most
Sprint planning	C4	Quick iteration with the team
Discovering system dependencies	C4	Fast exploration with stakeholders
Complex org with existing processes	ArchiMate	Start from business layer, work down
Documenting existing landscape	ArchiMate	Need business-IT mapping
Compliance documentation	ArchiMate	Formal, standardized notation
Explaining to executives	C4 (Context level)	Simplicity wins
Migration/transformation project	ArchiMate	Built-in plateau and gap modeling

Using Both Together

The best approach? Use both at different stages.

Phase 1: Concept (C4)

• Quick sketches during discovery
• Context and Container diagrams for alignment
• Fast iteration on design options

Phase 2: Design (C4)

• Component diagrams for technical design
• Developer-focused documentation
• Living documentation alongside code

Phase 3: Enterprise Integration (ArchiMate)

• Map the new system to business processes
• Document integration points
• Update enterprise architecture repository

Phase 4: Operations (ArchiMate)

• Maintain as-is architecture documentation
• Support impact analysis for future changes
• Compliance and audit readiness

Common Mistakes to Avoid

Mistake 1: Using ArchiMate Too Early (for greenfield projects)

I’ve seen teams spend weeks creating detailed ArchiMate models before writing any code. The models became outdated before the first sprint ended.

Better approach: For new projects with low organizational complexity, start with C4. Evolve to ArchiMate when the system stabilizes.

Exception: If you’re building a solution within a complex organization with existing business processes, ArchiMate from day one makes sense. The top-down approach (business processes → applications → technology) ensures alignment with business needs.

Mistake 2: Using C4 for Enterprise Documentation

C4 is great for individual systems, but it wasn’t designed to show business process dependencies or enterprise-wide impact analysis.

Better approach: Use ArchiMate when you need to answer “what business capabilities does this system support?”

Mistake 3: Over-Engineering Either Approach

Both tools can be over-complicated. A 50-box C4 diagram defeats the purpose. An ArchiMate model with every possible relationship becomes unreadable.

Better approach: Start minimal, add detail only when it answers a specific question.

Quick Start Recommendations

For C4:

• Start with Context diagram only
• Add Container diagram when discussing technical options
• Use Structurizr, PlantUML, or even draw.io
• Keep diagrams close to code (docs-as-code approach)

For ArchiMate:

• Start with Application Layer for IT documentation
• Add Business Layer when mapping to processes
• Use Archi (free) or enterprise tools like ARIS, Sparx
• Establish modeling conventions with your team

Conclusion

C4 and ArchiMate aren’t competitors - they’re complementary tools for different purposes.

• C4: Fast, intuitive, perfect for design and development communication
• ArchiMate: Comprehensive, formal, essential for enterprise architecture and business alignment

Start simple with C4. Evolve to ArchiMate when your organization needs to understand how IT supports business processes.

The best architecture documentation is the one that actually gets used. Choose the approach that fits your team’s needs today, and don’t be afraid to switch as those needs evolve.

---

What’s your experience with architecture modeling? Do you use both approaches or prefer one over the other? Let me know in the comments!
